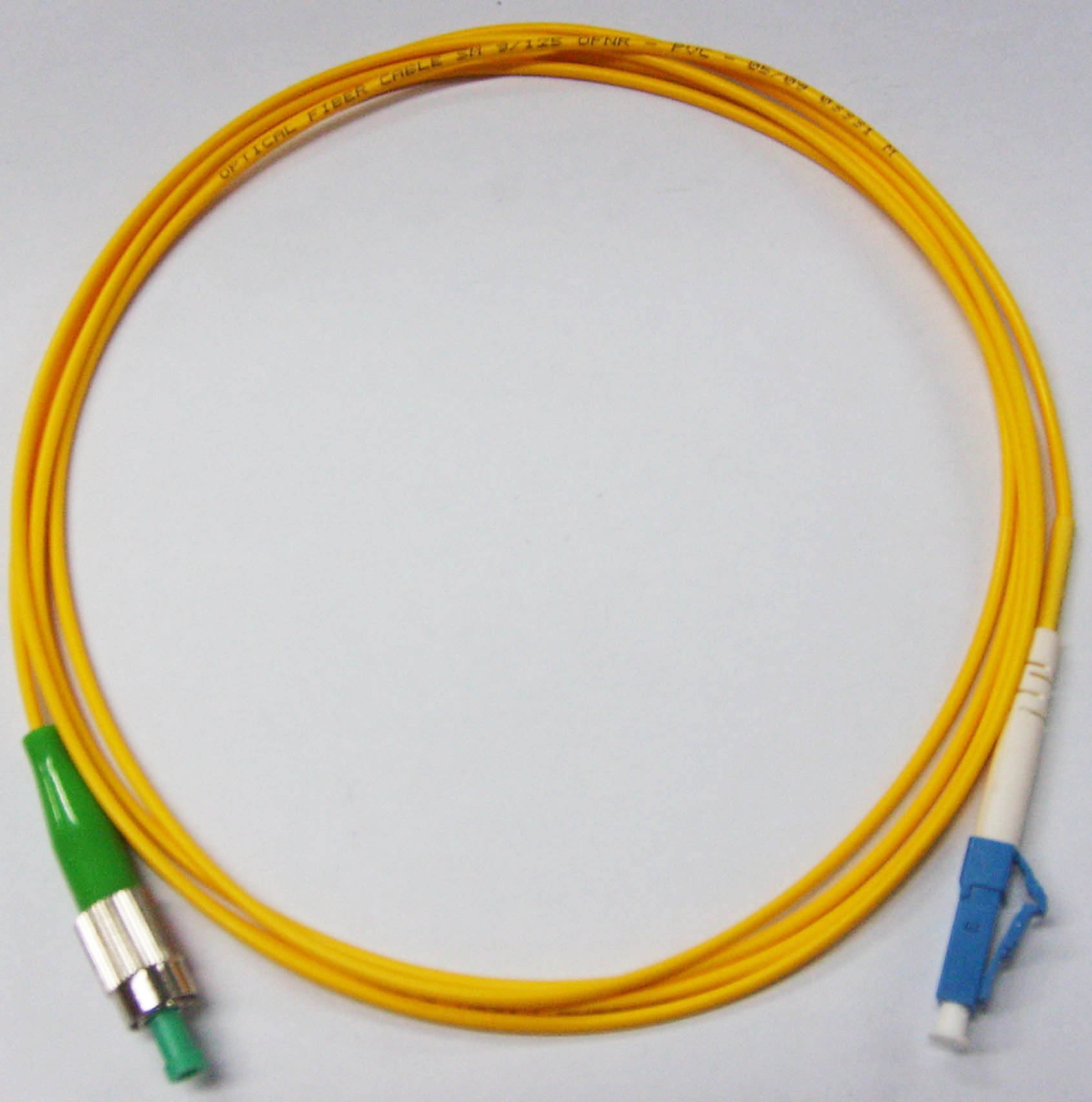

FC/APC to LC/UPC Fiber Optic Patch Cord simplex LSZH cable jacket

  • 1
  • 2
  • 3

Brand Name : CY COM

Model Number : FC-LC SM SX Patch Cord

Certification : ISO9001:2015 , RoHS

Place of Origin : Shenzhen , China

MOQ : 20pcs

Price : USD3.0-4.5/PCS

Payment Terms : L/C,T/T,Western Union payments for offline orders.

Supply Ability : 1 million connector / month

Delivery Time : 3-15 days

Packaging Details : PE bag

Cable Jacket : LSZH

Color : Yellow

Length : Can be customized

Insertion Loss : <=0.2dB

Contact Now


FC/APC to LC/UPC singlemode simplex LSZH cable jacket,fiber optic jumper manufacture

♦Material of patch cord:

♦Dust caps: LDPE, transparent (RoHS)
♦Plug housing: PBT, UPC/blue, APC/green, MM/beige (RoHS)
♦Inner frame: PBT, white (RoHS)
♦Ferrule: zirconium oxide ceramic material, white (RoHS)
♦Ferrule’s handle: copper (C3602), nickelage (RoHS)
♦Mechanical spring: stainless steel (RoHS)
♦Locating snap ring: copper alloy (HPD59-1), nickelage (RoHS)
♦Snap ring: aluminium alloy 6063 (RoHS)
♦Ring: copper alloy (HPD62), nickelage (RoHS)
♦Boot: nylon or PBT, UPC/blue, APC/green, MM/beige
♦Cable: SM/OM1/OM2/OM3/OM4, PVC/LSZH/OFNP

♦Technical Parameter :
Parameter Unit FC, SC, LC/ Armoured fiber patch cord ST, MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Operating wavelength nm 1310, 1510 1310, 1510 1310, 1510 1310, 1510
Exchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature °C -40~75 -40~75 -40~75 -40~75
Storage temperature °C -45~85 -45~85 -45~85 -45~85
Cable diameter mm Φ3.0, Φ2.0, Φ0.9 Φ3.0, Φ2.0, Φ0.9 Φ3.0, Φ2.0, Φ0.9 φ3.0, φ2.0, φ0.9


♦Application:

♦Gigabit Ethernet
♦Active device termination
♦Telecommunication networks
♦Video
♦Multimedia
♦Premise installations
♦Local area networks
♦FTTH and FTTX applications
♦CATV
♦Order information:

♦Type: SX/DX optional
♦Ferrule end face: APC/UPC/PC
♦Diameter: 0.9, 2.0, 3.0mm
♦Length:1m, 2m, 3m to 120m
♦Fiber: SM/OM1/OM2/OM3/OM4
♦Material of jacket: PVC/LSZH/OFNR

FC/APC to LC/UPC Fiber Optic Patch Cord simplex LSZH cable jacket
